KSB Valves

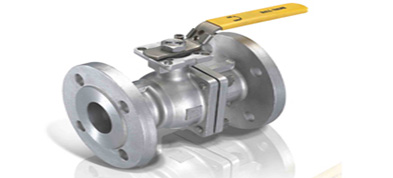

KSB Ball Valve

We supply a wide range of KSB Ball Valves and Gate Valve, Globe valves/ flow indicator/ butterfly valves which is used to regulate the flow of liquids through a sequence of pipes. Fabricated at manufacturer’s end using high quality raw material, these piping and valves can be tailor-made as per the technical specifications given by the client. George Fischer and KSB Valves certified equipment which is a testimony of the quality offered by us.

Applications :

• Gas lines and gas installations
• Gases to DVGW Worksheet G 260/I and II
• Combustible liquids as well as non-corrosive fluids
• Application requirements and tests according to DIN 3230 Part 5 PG 3 for gas lines and gas installations, DIN 3230 Part 6 for combustible liquids as well as API 6D and customer-specific requirements.

Operating data :

• Permissible pressure: 10 to 160 bar / Class 150 -- 900
• Permissible temperature --10 °C to +70 °C

Materials :

• P265GH 1.0425

Standard design :

• DVGW type tested
• Fully welded design
• Double block and bleed (sealing on the upstream and downstream side in both flow directions)
• Double piston effect system
• Metal seat rings with captured O-ring
• Trunnion-mounted ball
• Blow-out protected stem
• Lever on the stem
• Anti-static design

KSB Gate Valve

Each year KSB manufactures almost a million valves. The range of valves on offer caters for numerous applications and is a perfect addition to KSB's comprehensive pump range. As well as manufacturing at its European locations, pump and valve producer KSB also operates plants in Asia and the Americas. This production network ensures that local customer support is always on hand when required. All products comply with the latest safety regulations and operate with excellent energy efficiency.

Valves from KSB ensure the highest levels of energy efficiency thanks to state-of-the-art technology and over 140 years of experience.

Solutions by KSB

KSB valves are used in power stations, buildings, on ships and in process and water engineering systems. Alongside globe valves, gate valves, butterfly valves, ball valves, diaphragm valves and check valves, the product range also includes actuators and positioners. This diverse product spectrum complements the Group's broad range of pumps, leaving it well positioned to offer all-in solutions for hydraulic applications and draw on its 140 years of experience. Throughout the company’s history, KSB engineers have consistently developed new innovative solutions including the first maintenance-free cast iron globe valve (BOA-H) and the first soft-seated globe valve (BOA-W).

A selection can be found below.

A short overview on valves

In piping technology, a valve is a piping component which influences the fluid flow by opening, closing, diverting, mixing or partially obstructing the passage through itself. Valves are broadly classified according to their fields of application, e.g. power plant valves, heating valves, gas and food-grade valves. Valves are further categorised according to their basic design (globe, gate, butterfly, ball or plug and diaphragm valves) and according to the functions they perform, i.e. shut-off valves, safety valves, control valves and check or non-return valves. Depending on the type of actuation, a differentiation is made between manually operated and electrically, pneumatically and hydraulically actuated valves.

Valve design features

• Globe valve: obturator moves in a straight line and, in the seating area, parallel to the flow direction
• Gate valve: obturator moves in a straight line and, in the seating area, at right angles to the flow direction
• Ball or plug valve: obturator rotates about an axis at right angles to the flow direction and, in the open position, the flow passes through it
• Butterfly valve: obturator rotates about an axis at right angles to the flow direction and, in the open position, the flow passes around it
• Diaphragm valve: the flow passage is changed as a result of the deformation of the flexible obturator (diaphragm)
• Strainer

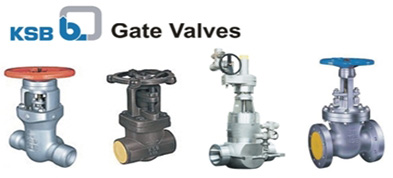

 KSB Gate Valves

• Stainless steel, bronze, cast steel, cast iron
• Rising and non-rising spindles
• Ends screwed and flanged BSTE/ANSI
• Sizes 15mm to 300mm

KSB Gate Valves
Applications:
• Power stations, Refineries, general industry, process engineering
• For water, steam, gas, oil & other media
Design:
• As per ASME B 16.34; API 600 or DIN Standards
• Available in Forged & Cast Construction
• Outside Screw & Yoke, Bolted Bonnet (Low Pressure Valves)
• Pressure Seal Bonnet Design (High Pressure Valves)
• Available with Stellite hard-faced Seats & Disc surface
• Graphite gaskets & packings with Braided wiping rings and other optional packing available
• Available with Electric Actuator
• Double disc wedge design

We supply a wide range of KSB Gate Valves and Ball Valve, Globe valves/ flow indicator/ butterfly valves which is used to regulate the flow of liquids through a sequence of pipes. Fabricated at manufacturer’s end using high quality raw material, these piping and valves can be tailor-made as per the technical specifications given by the client. George Fischer and KSB Valves certified equipment which is a testimony of the quality offered by us.

Applications :

• Power stations, general industry, process engineering
• For water, steam, gas, oil & other non-aggressive media
• Further applications on request

Operating data :

• lPressure up to 431 bar ( 6250 psi )
• Temperature up to +650 °C / 1200 °F
• Minimum temperature is 0°C (less than 0°C on request)
• Pressure-temperature ratings as per ASME B 16.34,Standard class

Materials :

• ASTM A 216 WCB from 0°C to 425°C
• ASTM A 217 WC6/WC9 from 0°C to 593°C
• ASTM A 217 C12A from 0°C to 650°C

Standard design :

• As per ASME B 16.34
• Pressure Seal Bonnet Design
• Stellite hard-faced Seats & Disc surface
• Graphite gaskets & packings with Braided wiping rings
• Internal pressure relieving on disc
• Direct retrofitting of Actuator
• Reduced bore
• Double disc wedge design

KSB Globe Valve

Each year KSB manufactures almost a million valves. The range of valves on offer caters for numerous applications and is a perfect addition to KSB's comprehensive pump range. As well as manufacturing at its European locations, pump and valve producer KSB also operates plants in Asia and the Americas. This production network ensures that local customer support is always on hand when required. All products comply with the latest safety regulations and operate with excellent energy efficiency.

Valves from KSB ensure the highest levels of energy efficiency thanks to state-of-the-art technology and over 140 years of experience.

Solutions by KSB

KSB valves are used in power stations, buildings, on ships and in process and water engineering systems. Alongside globe valves, gate valves, butterfly valves, ball valves, diaphragm valves and check valves, the product range also includes actuators and positioners. This diverse product spectrum complements the Group's broad range of pumps, leaving it well positioned to offer all-in solutions for hydraulic applications and draw on its 140 years of experience. Throughout the company’s history, KSB engineers have consistently developed new innovative solutions including the first maintenance-free cast iron globe valve (BOA-H) and the first soft-seated globe valve (BOA-W).

A selection can be found below.

A short overview on valves

In piping technology, a valve is a piping component which influences the fluid flow by opening, closing, diverting, mixing or partially obstructing the passage through itself. Valves are broadly classified according to their fields of application, e.g. power plant valves, heating valves, gas and food-grade valves. Valves are further categorised according to their basic design (globe, gate, butterfly, ball or plug and diaphragm valves) and according to the functions they perform, i.e. shut-off valves, safety valves, control valves and check or non-return valves. Depending on the type of actuation, a differentiation is made between manually operated and electrically, pneumatically and hydraulically actuated valves.

Valve design features

• Globe valve: obturator moves in a straight line and, in the seating area, parallel to the flow direction
• Gate valve: obturator moves in a straight line and, in the seating area, at right angles to the flow direction
• Ball or plug valve: obturator rotates about an axis at right angles to the flow direction and, in the open position, the flow passes through it
• Butterfly valve: obturator rotates about an axis at right angles to the flow direction and, in the open position, the flow passes around it
• Diaphragm valve: the flow passage is changed as a result of the deformation of the flexible obturator (diaphragm)
• Strainer

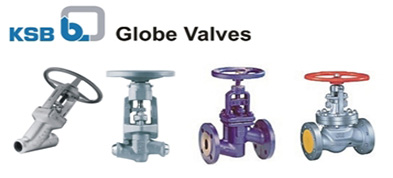

  KSB Globe Valves

KSB Globe Valves
Applications:
• Power stations, Refineries, general industry, process engineering
• For water, steam, gas, oil & other media
Design:
• As per ASME B 16.34; BS 1873 or DIN Standards
• Available in Forged & Cast Construction; Bellow Flange design
• Bolted Bonnet Design (Low Pressure Valves)
• Pressure Seal Bonnet Design (High Pressure Valves)
• Available with Stellite hard-faced Seats & Disc surface
• Graphite gaskets & packings with Braided wiping rings and other optional packing available
• Available with Electric Actuator

We supply a wide range of KSB Globe Valves and Gate Valve, Ball valves/ flow indicator/ butterfly valves which is used to regulate the flow of liquids through a sequence of pipes. Fabricated at manufacturer’s end using high quality raw material, these piping and valves can be tailor-made as per the technical specifications given by the client. George Fischer and KSB Valves certified equipment which is a testimony of the quality offered by us.

Applications :

• Power stations, general industry, process engineering
• For water, steam, gas, oil & other non-aggressive media
• Further applications on request

Operating data :

• Pressure up to 431 bar ( 6250 psi )
• Temperature up to +650 °C / 1200 °F
• Minimum temperature is 0°C (less than 0°C on request)
• Pressure-temperature ratings as per ASME B 16.34,Standard class

Materials :

• ASTM A 216 WCB from 0°C to 425°C
• ASTM A 217 WC6/WC9 from 0°C to 593°C
• ASTM A 217 C12A from 0°C to 650°C

Standard design :

• As per ASME B 16.34
• Pressure Seal Bonnet Design
• Stellite hard-faced Seats & Disc surface
• Graphite gaskets & packings with Braided wiping rings
• Direct retrofitting of Actuator

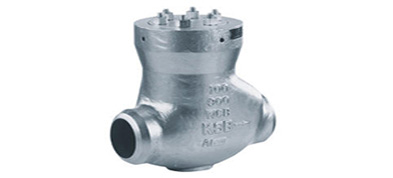

KSB Swing Check Valve

We supply a wide range of KSB Globe Valves and Gate Valve, Ball valves/ flow indicator/ butterfly valves which is used to regulate the flow of liquids through a sequence of pipes. Fabricated at manufacturer’s end using high quality raw material, these piping and valves can be tailor-made as per the technical specifications given by the client. George Fischer and KSB Valves certified equipment which is a testimony of the quality offered by us.

Applications :

• Power stations, general industry, process engineering
• For water, steam, gas, oil & other non-aggressive media
• Further applications on request

Operating data :

• lPressure up to 431 bar ( 6250 psi )
• Temperature up to +650 °C / 1200 °F
• Minimum temperature is 0°C (less than 0°C on request)
• Pressure-temperature ratings as per ASME B 16.34,Standard class

Materials :

• ASTM A 216 WCB from 0°C to 425°C
• ASTM A 217 WC6/WC9 from 0°C to 593°C
• ASTM A 217 C12A from 0°C to 650°C

Standard design :

• As per ASME B 16.34
• Pressure Seal Bonnet Design
• Stellite hard-faced Seats & Disc surface
• Graphite gaskets
