SAFETY VALVE MANUFACTURERS IN INDIA
Safety Relief Valves
We provide superior quality valves, industrial safety relief valves, flanged safety relief valves, industrial safety valves, flanged safety valves that are specially designed to offer high durability and optimum performance. Using materials like pure aluminum, cast iron and stainless steel trim these valves are made to high resistance to temperature and corrosion. Functionally different valves like Safety Valve, Safety Relief Valve, Pressure Reducing Valves, Breather Valves, Globe & Ball Valves, Pipeline Specialty Valves, Flush Bottom Valves and Float Valves are available with us.
Safety Relief Valves
Manufactured to API/ASME codes. Full Life, 'Pop' type, Full Nozzle. Screwed/Flanged Models. Sizes : 15NB to 300 NB. Standardised orifice. Angle/Straight Patterns. Inverted-Bottom spring mounted types. Procured in castings and fabrication (Bar Stock), special trims provided. Set pressure and hydro tests as per specification or standard carried and provided.
| Fluidyne carried out an extensive market research to manufature durable and effective safety relief valves, industrial safety relief valves, flanged safety relief valves, industrial safety valves, flanged safety valves that are highly suitable for most chemical, petrochemical, oil, pharmaceutical, phartilizer, power industries and more. These industrial safety relief valves, flanged safety relief valves, industrial safety valves, flanged safety valves have high reliability and are approved by factory inspectors, inspectors under Indian Boiler Regulation (IBR), B.V., Lloyds and Chief Controller of Explosives. Hani Enterprises Metal safety and relief valves are in used in above industries for over 50 years. | Flanged Safety Relief Valves  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Our range of small bore safety valves, industrial safety relief valves, flanged safety relief valves, industrial safety valves, flanged safety valves offer superior performance and maximum functionality. They are available in Screwed, Socket weld, Flanged Construction type or flanged-inlet, Screwed-outlet connection type. Their simplicity in construction makes them pretty cost effective and easy to use.

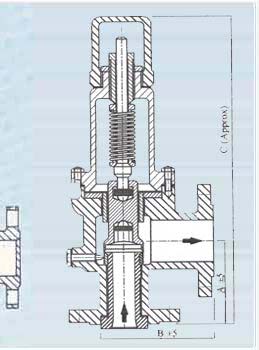

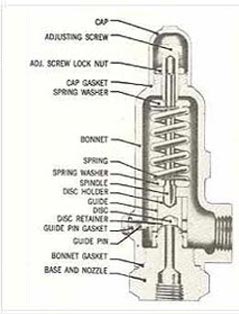

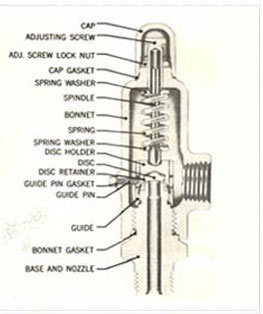

| Bar Stock Relief Valve (Type - 200 B)  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

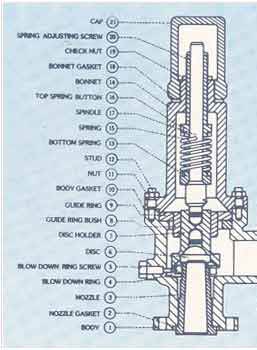

| Safety Relief Valve (Type - TA 100)  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Breather Valves
Breather Valves & Tank Fittings Flame/Spark ArrestersFor Storage Tank, complete range of sizes :- 15 NB to 600 NB Flame and Detonation Arresters, Spark Arresters Free-Emergency-Conservation Vents Dip Gauges and Gauge HatchsVent nuts/Caps, Syphon bush, Fill caps, Lightning Arresters etc. Tyrus Valve, Vacuum Relief, Pressure Relief Valves. Available in : CS, CI, SS304, 316, AI etc. For more details on Tank Fittings, Flame / Spark Aresstors plz refer our section on 'Safety Fittings' Standard Pressure Cum Vacuum Relief Valve (VARAC Type) Open to Atmosphere |  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Special Pressure Vacuum Relief Value with Outlet Connection Breather Valve | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Our Model 1210 valves are developed mainly for blow-down lines or pressurized storage vessels. External atmospheric conditions like temperature and corrosive air determine the material combination for these valves. Higher settings then most dead weight types is achieved by spring loading of pressure pallets. Standard non-metallic seat inserts are made using Neoprene and Teflon material. This range of valves are available using pure aluminum, and have cast iron body, stainless steel trim. They can also be made from other materials on special order. |  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dead Weight Pressure Vacuum Relief Valve with Inlet and Outlet Connection
|  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Low Pressure Vacuum Breather Valve
Features
|  | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vacuum Relief Breather Valve
Designed mostly like model PV 1220 our PV - 1240 range of vauts also offer high performance & durability. These efficient valves are commonly suitable for vacuum service. The disc available with these vaults is either weight loaded or spring loaded.
Features
- This model Similar to model PV 1220, is suitable only Vacuum service. The disc is either weight loaded or spring loaded.
Safety Valves are designed and manufactured to meet the requirement of all a variety of applications as per API 526 and API 520. They also conforms to Standard VIII and the design requirement of Indian Boiler Regulations, they are of Full Lift type direct spring loaded, with a top guide, The full nozzle has the eliminating distortion of the seating surface, as body strain is not transmitted The Nozzle is made from a corrosion resistance stainless Steel material, When closed position, the fluid does not come in contact with the valve Body an therefore only subject to the outlet pressure which is very much lower pressure.
DESIGN : | Self Actuating, Full Lift, Spring Loaded. |
DISCHARGE : | Angle |
BONNET : | Open or Closed |
PRESSURE RATING : | 150#, 300#, 600# |
MOC : | Cast Iron, Cast Steel, SS 304 / 316, SS 304L / 316L, Gunmetal etc. |
SIZE AVAILABLE : ½" X ¾ " TO 16" X 18"
END CONNECTION : Screwed, Flanged End Safety Relief Valves, Safety Relief Valves
WIDELY USED FOR : Steam Boilers, Steam Services, Compressors, Receivers, Burners, Dryers and other Piping Systems and Many More.
Similar to FTVC-520, but with closed bonnet & closed cap. Also available with same sizes and rating as FTVC - 520. | Close Bonnet Safety Valve For Steam Application |
Sizes: 15X20mm, 20X25mm & 25X40mm. Suitable for Working Pressure upto 200 bar. Body: Fored Steel & Investment Cast Stainless Steel
|
Open Bonnet, Conventional Design, Open Cap with Lever, Valve Size : 20X25 to 200X250.
|
|
|
Small Size Flanged End
Screwedd End Connection Safety Valve
FT-110 : Thermal Relief Valve :
Excellent product for the production of Pump, piping, vessels etc. The valve opens with the increase above set pressure and closes with-in 3 to 4 psig (0.2 to 0.3 Kg/cm2) drop in pressure. The smooth, it does not allows any jack or surge. The valves are also used in refineries and air cra pumping station on Air ports.Johnson Valves Dealer & Distributors in India
Safety Relief Valves810 – Safety Relief Valve
|
707 Series – Safety Relief ValveBailey Birkett Bronze High Lift Safety Relief Valve
Size : ½” (15mm) to 2″ (50mm) Connection : BSP, Flanged – BS4504 PN25 (NPT & other drillings on request) Trim : Aflas | EPDM | Stainless Steel Fluids : Air – Inert Gas – Oil – Steam – Water Set Pressure Range: 0.35 to 24 Bar |
716 Series – Safety Relief ValveBailey Birkett Bronze/Stainless Steel Full Lift Safety Relief ValveFull lift safety relief valve, offers the combination of top guiding and unobstructed seat bore, producing a valve with maximum discharge capacity. Supplied with certificate confirming set lift pressure.
Connection : BSP, Flanged – BS4504 PN16 x BSP (other drillings on request) Trim : Aflas | EPDM | Stainless Steel Fluids : Air – Inert Gas – Oil – Steam – Water Set Pressure Range : 0.35 to 32 Bar (dependent on duty & size) |
542 – Safety Relief ValveNabic Bronze Standard Lift Safety Relief Valve
Size : ½” (15mm) to 3″ (80mm) Connection : BSP Trim : PTFE Fluids : Air – Inert Gas – Oil – Steam – Water Set Pressure Range: 0.3 to 10.5 Bar |
500 – Safety Relief ValveNabic Bronze High Lift Safety Relief Valve
Size : ⅜” (10mm) to 2½” (65mm) Connection : BSP Trim : PTFE Fluids : Air – Inert Gas – Oil – Steam – Water Set Pressure Range: 0.3 to 10.5 Bar |
716T – Safety Relief ValveBailey Birkett Bronze Pressure & Temperature Safety Relief Valve
Size : ¾” (20mm) to 2″ (50mm) Connection : BSP Trim : Silicone Fluids : Water Set Pressure Range : 2.4 to 10.3 Bar |
500T – Safety Relief ValveNabic Bronze Pressure & Temperature Safety Relief Valve
Size : ½” (15mm) to 2″ (50mm) Connection : BSP Trim : Resilient Soft Seating Fluids : Air – Inert Gas – Water Set Pressure Range: 0.3 to 10.5 Bar |
480 / 485 / 490 – Safety Relief ValveBailey Birkett Bronze/Stainless Steel Liquid By-Pass Safety Relief Valve
Size : ½” (15mm) to 3″ (80mm) Connection : BSP Trim : Bronze | Stainless Steel Fluids : Oil – Water Set Pressure Range: 0.35 to 24 Bar |
756 Series – Safety Relief ValveBailey Birkett Cast Steel Full Lift Safety Relief Valve With Blow-Down Ring
Size : 1″ (25mm) to 3″ (80mm) Connection : Flanged – PN16 x 16, PN40 x 16, ANSI150 x 150, ANSI300 x 150 Trim : Stainless Steel Fluids : Air – Inert Gas – Oil – Steam – Water Set Pressure Range : 0.35 to 40 Bar |
812 – Safety Relief ValveGoetze Brass High Performance Atmospheric Discharge Safety Relief Valve
Size : ½” (15mm) to 2″ (50mm) Connection : BSP (NPT on request) Trim : FKM | NBR | PTFE Fluids : Air – Inert Gas Set Pressure Range: 0.2 to 45 Bar |
813 – Safety Relief ValveGoetze Brass Shrouded Atmospheric Discharge Safety Relief Valve
Size : ½” (15mm) to 2″ (50mm) Connection : BSP (NPT on request) Trim : FKM | PTFE Fluids : Air – Inert Gas Set Pressure Range: 0.2 to 6 Bar |
412 – Safety Relief ValveGoetze Stainless Steel Atmospheric Discharge Safety Relief Valve
Size : ½” (15mm) to 2″ (50mm) Connection : BSP (NPT on request) Trim : FKM | NBR | PTFE Fluids : Air – Inert Gas Set Pressure Range: 0.2 to 45 Bar |
413 – Safety Relief ValveGoetze Stainless Steel Shrouded Atmospheric Discharge Safety Relief Valve
Size : ½” (15mm) to 2″ (50mm) Connection : BSP (NPT on request) Trim : FKM | PTFE Fluids : Air – Inert Gas Set Pressure Range: 0.2 to 6 Bar |
1400LP – Safety Relief ValveLow Pressure Safety Relief Valve
Size : 1″ (25mm) to 16″ (400mm) Connection : Flanged – PN16 & ANSI 150 Trim : Stainless Steel Fluids : Air – Inert Gas – Oil – Steam – Water Set Pressure Range: 5 to 200 mbar |
1216B – Safety Relief ValveFlanged Stainless Steel Safety Relief Valve
Size : ½” (15mm) to 1″ (25mm) Connection : Flanged – PN16/40 & ANSI 150/300 Trim : Stainless Steel Fluids : Air – Inert Gas – Oil – Steam – Water Set Pressure Range: 0.2 to 40 Bar |
1216HP – Safety Relief ValveHigh Pressure Stainless Steel Safety Relief Valve
Size : ½” (15mm) to 2″ (50mm) Connection : BSP Trim : Stainless Steel Fluids : Air – Inert Gas – Oil – Steam – Water Set Pressure Range: 0.2 to 300 Bar |
1216 – Safety Relief ValveStainless Steel Safety Relief Valve
Size : ½” (15mm) to 2″ (50mm) Connection : BSP Trim : Stainless Steel Fluids : Air – Inert Gas – Oil – Steam – Water Set Pressure Range: 0.2 to 40 Bar |
6200 – Safety Relief ValveWade Brass Enclosed Discharge Safety Relief Valve
Size : ½” (15mm) to 1″ (25mm) Connection : BSP Trim : Silicone Rubber Fluids : Air – Inert Gas Set Pressure Range: 1.8 to 12.5 Bar |
6100 – Safety Relief ValveWade Brass Atmospheric Discharge Safety Relief Valve
Size : ½” (15mm) to 1″ (25mm) Connection : BSP Trim : Silicone Rubber Fluids : Air – Inert Gas Set Pressure Range: 1.8 to 12.5 Bar |
6000 – Safety Relief ValveWade Brass Atmospheric Discharge Safety Relief Valve
Size : ¼” (6mm) Connection : BSP Trim : Silicone Rubber Fluids : Air – Inert Gas Set Pressure Range: 1.8 to 12.5 Bar |
352 – Safety Relief ValveGoetze Cast Iron High Capacity Safety Relief Valve – Flanged
Size : 1½” (40mm) to 2″ (50mm) Connection : Flanged – BS4504 PN16 Trim : EPDM | FKM | NBR | PTFE Fluids : Air – Inert Gas – Oil – Steam – Water Set Pressure Range: 0.5 to 16 Bar |
452 – Safety Relief ValveGoetze Stainless Steel High Capacity Safety Relief Valve – Flanged
Size : 1½” (40mm) to 2″ (50mm) Connection : Flanged – BS4504 PN16/25 Trim : EPDM | FKM | NBR | PTFE Fluids : Air – Inert Gas – Oil – Steam – Water Set Pressure Range: 0.5 to 25 Bar |
852 – Safety Relief ValveGoetze Bronze High Capacity Safety Relief Valve – Flanged
Size : 1½” (40mm) to 2″ (50mm) Connection : Flanged – BS4504 PN16/25 Trim : EPDM | FKM | NBR | PTFE Fluids : Air – Inert Gas – Oil – Seawater – Steam – Water Set Pressure Range: 0.5 to 25 Bar |
652 – Safety Relief ValveGoetze Bronze Enclosed Safety Relief Valve With Diaphragm
Size : ½” (15mm) to 2″ (50mm) Connection : BSP Trim : EPDM | FKM | NBR Fluids : Air – Inert Gas – Oil – Steam – Water Set Pressure Range: 1 to 16 Bar |
746 Series – Safety Relief ValveBailey Birkett Cast Steel/Stainless Steel Full Lift Safety Relief Valve
Size : 1″ (25mm) to 4″ (100mm) Connection : Flanged – PN16 x 16, PN40 x 16, ANSI150 x 150, ANSI300 x 150 Trim : EPDM | PTFE | Stainless Steel | Viton Fluids : Air – Inert Gas – Oil – Steam – Water Set Pressure Range : 0.35 to 40 Bar |
723 / 726 / 733 / 736 – Safety Relief ValveBailey Birkett Cast Steel Double High Lift Safety Relief Valve
Size : 1½” (40mm) to 4″ (100mm) Connection : Flanged – PN16x6, PN40x16, FxE, HxF (others on request) Trim : Stainless Steel Fluids : Air – Inert Gas – Oil – Steam – Water Set Pressure Range : 723/726 – 0.2 to 13 Bar | 733-736 – 0.2 to 24 Bar |
683 / 686 / 693 / 696 – Safety Relief ValveBailey Birkett Cast Steel Single High Lift Safety Relief Valve
Size : 1½” (40mm) to 4″ (100mm) Connection : Flanged – PN16x6, PN40x16, FxE, HxF (others on request) Trim : Stainless Steel Fluids : Air – Inert Gas – Oil – Steam – Water Set Pressure Range : 683/686 – 0.2 to 13 Bar | 693-696 – 0.2 to 24 Bar |
1B1BE111B – Safety Relief ValveBailey Birkett Cast Steel High Pressure Full Nozzle Safety Relief Valve
Size : ½” (15mm) Connection : BSP (NPT on request) Trim : Stainless Steel Fluids : Air – Inert Gas – Oil – Steam – Water Set Pressure Range: 0.3 to 138 Bar |
3373 / 3376 – Safety Relief ValveBailey Birkett Bronze/Stainless Steel Full Lift Safety Relief Valve
Size : ½” (15mm) to 2½” (65mm) Connection : BSP Trim : Bronze Fluids : Air – Inert Gas – Oil – Steam – Water Set Pressure Range : 0.25 to 24 Bar THIS VALVE IS OBSOLETE – SEE ALTERNATIVE 707 SERIES Tag : safety valves, Safety Relief Valve, Industrial Safety Relief Valve, Safety Relief Valve Dealers, Safety Relief Valve Distributors, Safety Relief Valve Exporters, Safety Relief Valve Suppliers, Safety Relief Valve Manufacturers in india, Safety Relief Valve Price in India, safety relief valve 10 psi, safety relief valve 5 psi, safety relief valve 15 psi, 1/4 inch safety relief valve, pressure relief valve 1 inch, pressure relief valve 2 inch, pressure relief valve 6 inch, pressure safety valve manufacturers, spring loaded safety valve manufacturers, flanged pressure relief valve, water heater pressure relief valve, boiler pressure relief valve, vacuum relief valve, pressure relief valve weight, pressure safety valve sizing, safety valve dimensions, pressure safety valve dimensions |
Goetze Brass Atmospheric Discharge Safety Relief Valve
WRAS approved* high lift safety relief valve’s top guided design, provides an unobstructed seat bore and high lift capability. Supplied with certificate confirming set lift pressure.
Size : ½” (15mm) to 2″ (50mm)
Suitable for use on hot water, steam or air. Although designed primarily for protection of hot water boilers, it’s wide range of applications makes it an ideal general purpose valve.
Designed primarily for use on un-vented hot water heating systems, where a high lift capacity is required. Also ideal for steam, air and inert gas applications.
Protects un-vented hot water systems against both excess pressure and temperatures. Temperature probe will open the valve at 90oC to 95oC. Supplied with certificate confirming set lift pressure.
Protects un-vented hot water systems against both excess pressure and temperatures. Supplied with certificate confirming set lift pressure
Can be used as a relief valve or combined relief and by-pass valve and can be modified to operate as an integral pump by-pass relief valve. Supplied with certificate confirming set lift pressure.
Combines a top piston guided valve and an unobstructed seat bore with a full lift capability, giving maximum discharge. Supplied with certificate confirming set lift pressure.
High performance and high capacity brass safety relief valve suitable for protecting air compressors. Supplied with certificate confirming set lift pressure.
High performance and high capacity brass safety relief valve with a shroud providing extra safety when relieving air with liquid, granular or dusty particles. Supplied with certificate confirming set lift pressure.
High performance and high capacity stainless steel safety relief valve suitable for protecting air compressors. Supplied with certificate confirming set lift pressure.
High performance and high capacity stainless steel safety relief valve with a shroud providing extra safety when relieving air with liquid, granular or dusty particles. Supplied with certificate confirming set lift pressure.
A cost effective EU manufactured low pressure safety relief valve suitable for a wide variety of applications. Available in iron, steel and stainless steel bodies.
The 1216B is an enclosed angled pattern safety relief valve, available with a dome top, lifting device, sealed packing lever or test gag.
The 1216HP is an enclosed angled pattern safety relief valve, available with a dome top, lifting device, sealed packing lever or test gag. A cryogenic version is also available service temperatures down to –196oC.
A standard high lift safety relief valve with a side outlet discharge suitable for air and inert gas applications.
A standard high lift safety relief valve with atmospheric discharge suitable for air and inert gas applications.
A compact high lift safety relief valve with atmospheric discharge suitable for air and inert gas applications.
Enclosed cast iron safety relief valve with a with a sealed upper part suitable for gasses, oil, water & steam applications. Supplied with certificate confirming set lift pressure.
Enclosed stainless steel safety relief valve with a with a sealed upper part suitable for gasses, oil, water & steam applications. Supplied with certificate confirming set lift pressure.
Enclosed bronze safety relief valve with a with a sealed upper part suitable for gasses, oil, water & steam applications. Supplied with certificate confirming set lift pressure.
Safety valve with a sealed cap to prevent tampering and knurled nut for easing valve lid. Fitted with diaphragm to prevent liquids entering the spring chamber. Supplied with certificate confirming set lift pressure.
Incorporates a freely pivoting disc, which ensures correct alignment with the nozzle. The combination of top guiding, unobstructed seat bore and full lift capability ensures the highest possible discharge rate.
Double seated, with a top guided design, to provide an unobstructed seat bore and with a floating disc that aligns correctly under all working conditions. Supplied with certificate confirming set lift pressure.
Single seated, with a top guided design, to provide an unobstructed seat bore and with a floating disc that aligns correctly under all working conditions. Supplied with certificate confirming set lift pressure.
The full nozzle, full lift design with direct spring loaded guide eliminates distortion of the seat surface whist maintaining the highest possible capacity. Supplied with certificate confirming set lift pressure.
Pop type safety valves are of traditional design where simple features reduce both the initial outlay and maintenance costs. Supplied with certificate confirming set lift pressure.
